Oil Delivery Hose
Let’s Start Work
Together
Please feel free to contact us. We will get back to you with 1-2 business days. Or just call us now.
Application
The oil delivery hose is a versatile solution designed for the safe and efficient delivery of various petroleum products, including gasoline, diesel oil, and fuel oil with aromatic content up to 50%. Additionally, it is suitable for handling seawater, fresh water, mud, air, and other general purposes, making it a multifunctional hose for diverse applications.
In industries such as transportation, marine, construction, agriculture, and manufacturing, the oil delivery hose plays a crucial role in the transfer of liquids and fluids. Whether used for refueling operations, oil transfer between tanks and vessels, or pumping out bilge water on ships, this hose ensures efficient and reliable fluid handling.
The robust construction of the oil delivery hose includes features such as a reinforced tube, high-strength textile or wire reinforcement, and a durable cover. These components are engineered to withstand the corrosive effects of petroleum products, as well as abrasion from rough handling and environmental factors such as sunlight and ozone exposure.

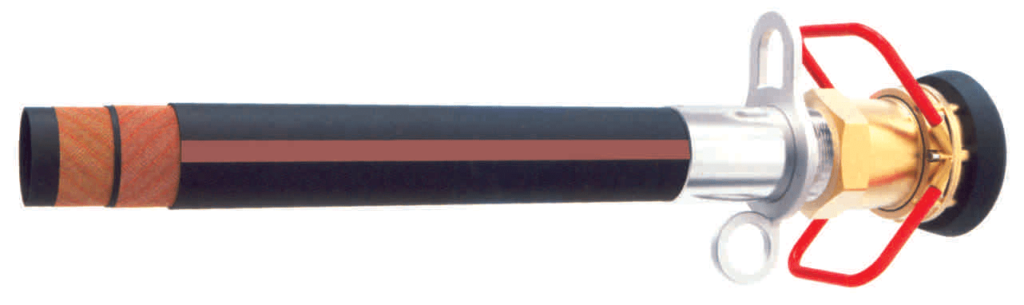

Hose Structure
The oil delivery hose is engineered with a robust structure to ensure reliable performance in handling various fluids. Its components include:
Tube: The inner tube is crafted from black smooth nitrile rubber, providing excellent oil resistance, seawater resistance, high-temperature resistance, and resistance to acids and alkalis. This ensures the hose can withstand the corrosive effects of petroleum products, seawater, and harsh chemicals.
Reinforcement: The hose features reinforcement provided by high-tension textile fabric and anti-static copper wire. This combination of reinforcements enhances the hose’s strength and durability, allowing it to withstand high pressures encountered during fluid delivery operations. The anti-static copper wire dissipates static electricity, reducing the risk of sparking and ensuring safety in potentially hazardous environments.
Cover: The outer cover is made of black blended chloroprene rubber and butadiene rubber, offering wear resistance, ozone and ageing resistance, oil resistance, and heat resistance. This protective cover shields the hose from external elements such as abrasion, ozone, UV radiation, and oil, ensuring long-term durability and reliable performance in various operating conditions, including those with potential fire hazards.
Temperature Range
-30℃ to + 100℃
This broad temperature tolerance allows the hose to maintain its functionality and performance across a range of temperatures, from freezing cold conditions to moderate heat. Whether used in outdoor settings or indoor environments, and regardless of temperature fluctuations, the hose remains capable of safely and efficiently handling fluids while maintaining its structural integrity.
Internal Dia- meter (inch) (mm) | Outer Dia- meter (inch) (mm) | Working Pressure (bar) (psi) | Burst Pressure (bar) (psi) | S Safety Coefficien | MBR (mm) | WT Weight (kg/m) | L LengthMax (m) | ||||
3/4 | 19 | 1.22 | 31 | 10 | 150 | 40 | 600 | 4 | 110 | 0.7 | 100 |
1 | 25 | 1.54 | 39 | 10 | 150 | 40 | 600 | 4 | 150 | 1 | 100 |
1-1/4 | 32 | 1.85 | 46 | 10 | 150 | 40 | 600 | 4 | 200 | 1.3 | 100 |
1-1/2 | 38 | 2.09 | 53 | 10 | 150 | 40 | 600 | 4 | 250 | 1.4 | 100 |
2 | 51 | 2.64 | 67 | 10 | 150 | 40 | 600 | 4 | 350 | 1.8 | 100 |
2-1/2 | 64 | 3.11 | 79 | 10 | 150 | 40 | 600 | 4 | 420 | 2.2 | 100 |
3 | 76 | 3.62 | 92 | 10 | 150 | 40 | 600 | 4 | 500 | 2.5 | 100 |
4 | 102 | 4.69 | 119 | 10 | 150 | 40 | 600 | 4 | 650 | 3.6 | 100 |
5 | 127 | 5.75 | 146 | 10 | 150 | 40 | 600 | 4 | 800 | 5.7 | 100 |
6 | 152 | 6.77 | 172 | 10 | 150 | 40 | 600 | 4 | 950 | 7.1 | 100 |
8 | 203 | 9.02 | 229 | 10 | 150 | 40 | 600 | 4 | 1400 | 11.3 | 100 |
